Tips on how to create professional-looking plots in Python

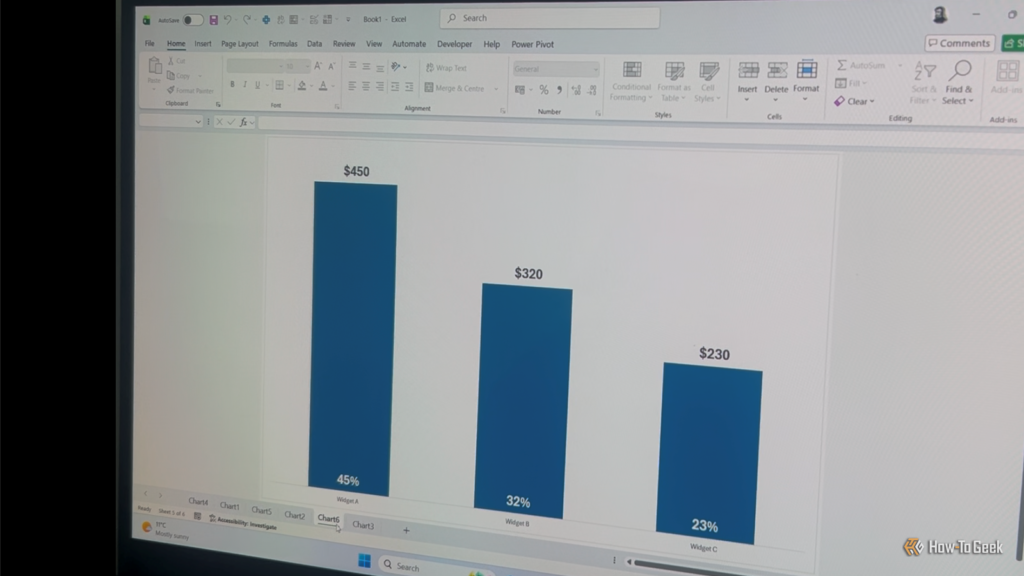

Excel and different spreadsheets are ubiquituous in industry as a result of they assist you to create easy graphics. If you wish to take your reviews and shows to the following stage, you may need to imagine studying Python to create tough visualizations to help you stand proud of the gang.

Preliminary setup

Growing the Python toolbox

To make plots in Python, you will have to arrange an atmosphere with the proper programs. Those come with:

Whilst they are no longer libraries, IPython and Jupyter will make your existence manipulating information with Python a lot more straightforward. IPython complements interactive Python, whilst Jupyter Notebooks enable you stay monitor of your paintings and percentage it with others.

It is best to make use of a device that may arrange your Python surroundings to put in those gear. My favourite device in this day and age is Pixi. You’ll set up Pixi from the directions at the Pixi web site to your terminal-based gadget, together with macOS, Linux, and PowerShell on Home windows.

As soon as you have got put in Pixi you’ll be able to set up the surroundings. As a result of you’ll be able to most likely need those at your fingertips, you’ll be able to set up them into the worldwide surroundings:

pixi world set up --environment graphics --expose jupyter --expose ipython jupyter numpy pandas seaborn matplotlib ipython

This may increasingly set up Jupyter, IPython, NumPy, Seaborn, and Matplotlib. Since Matplotlib is a dependency for Seaborn, it might have most likely been put in anyway, however we need to be sure it is to be had, since we’re going to factor some instructions immediately to Matplotlib. The --expose possibility tells Pixi to make IPython’s executable to be had to Jupyter.

Quiz

8 Questions · Check Your Wisdom

Python programming fundamentals
Trivialities problem

Suppose you realize your loops out of your lists? Put your Python wisdom to the take a look at.

SyntaxInformation SortsPurposesLoopsFundamentals

Start

Which of the next is the right kind technique to print ‘Hi, Global!’ in Python 3?

Aprint ‘Hi, Global!’Becho(‘Hi, Global!’)Cprint(‘Hi, Global!’)Dconsole.log(‘Hi, Global!’)

Proper! In Python 3, print is a serve as, so it calls for parentheses. That is in fact one of the crucial key variations from Python 2, the place print was once a commentary and did not want them.

Now not somewhat. The proper solution is print(‘Hi, Global!’). Python 3 treats print as a serve as, requiring parentheses — not like Python 2, the place it’s essential write print with out them.

Proceed

What information kind does the expression kind(3.14) go back in Python?

AintBdoubleCdecimalDglide

Proper! Python makes use of the glide kind to constitute decimal numbers. In contrast to another languages, Python does not have a separate ‘double’ kind — floats in Python are in fact double-precision via default.

Now not somewhat. The solution is glide. Python makes use of glide to constitute decimal numbers, and regardless of being double-precision underneath the hood, there is no separate ‘double’ kind in Python such as you’d to find in Java or C++.

Proceed

What image is used to write down a single-line remark in Python?

A//B/*C#D—

Proper! The hash image (#) marks a single-line remark in Python. The rest written after it on that line is left out via the interpreter, making it best for notes and explanations on your code.

Now not somewhat. Python makes use of the # image for single-line feedback. The // taste is utilized in languages like JavaScript and C++, whilst — is commonplace in SQL and Lua.

Proceed

Which of the next Python information constructions is immutable?

AlistingBdictionaryCsetDtuple

Proper! Tuples are immutable, that means their contents can’t be modified after advent. This makes them helpful for storing information that should not be changed, and they are able to also be used as dictionary keys — not like lists.

Now not somewhat. The solution is tuple. Tuples are immutable in Python, so as soon as created, you’ll be able to’t upload, take away, or trade their components. Lists, units, and dictionaries are all mutable and may also be changed freely.

Proceed

What is going to the next code print?

for i in vary(3):
print(i)

A1, 2, 3B0, 1, 2C0, 1, 2, 3D1, 2

Proper! Python’s vary(3) generates numbers ranging from 0 as much as, however no longer together with, 3. So it produces 0, 1, and a pair of. This zero-based indexing is a elementary idea in Python and most present programming languages.

Now not somewhat. The solution is 0, 1, 2. Python’s vary() serve as begins at 0 via default and prevents earlier than the given quantity, so vary(3) produces 0, 1, and a pair of — no longer 1, 2, 3.

Proceed

Which key phrase is used to outline a serve as in Python?

Aserve asBoutlineCfuncDdef

Proper! Python makes use of the def key phrase to outline purposes. It is brief for ‘outline,’ and it is adopted via the serve as identify, parentheses for parameters, and a colon to start out the serve as frame.

Now not somewhat. The proper key phrase is def. Python assists in keeping issues concise — def is brief for ‘outline,’ and it is the best key phrase used to create same old purposes. The phrase ‘serve as’ itself isn’t a key phrase in Python.

Proceed

What’s the output of the next expression in Python? bool(0)

ATrueBNoneCFalseDError

Proper! In Python, 0 is regarded as ‘falsy,’ so bool(0) returns False. Different falsy values come with empty strings, empty lists, None, and zero.0. Any non-zero quantity evaluates to True.

Now not somewhat. The solution is False. Python treats 0 as a falsy worth, so changing it to a boolean offers False. This idea of truthy and falsy values is extensively utilized in Python conditional expressions.

Proceed

What does the ‘len()’ serve as do in Python?

AReturns the biggest part in a chainBReturns the choice of pieces in an objectCConverts a worth to an integerDExams if a string accommodates best letters

Proper! The len() serve as returns the choice of pieces in an object, such because the choice of characters in a string or the choice of components in a listing. It is considered one of Python’s maximum incessantly used integrated purposes.

Now not somewhat. The solution is that len() returns the choice of pieces in an object. For instance, len(‘Python’) returns 6, and len([1, 2, 3]) returns 3. For locating the biggest part, you would use the max() serve as as an alternative.

See My Ranking

Problem Whole

Your Ranking

/ 8

Thank you for enjoying!

Take a look at Once more

Line charts

Plotting a time collection

You’ll create line charts with Seaborn. First, you will have to import the libraries you simply put in the use of IPython or Jupyter:

import numpy as np
import pandas as pd
import seaborn as sns
sns.set_theme()
import matplotlib.pyplot as plt

The primary 3 strains import NumPy, pandas, and Seaborn the use of shortened names.

We will display a line chart that represents a time collection the use of one of the crucial integrated datasets that Seaborn comprises. This features a listing of airline flights and passenger numbers from 1949 via 1960.

First, we’re going to load the dataset:

flights = sns.load_dataset('flights')

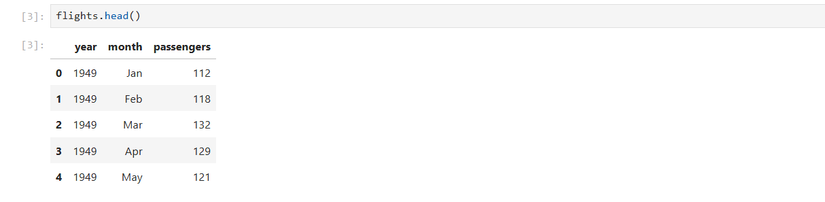

This creates a pandas DataFrame, which we will be able to read about the primary few strains of with the head() way:

flights.head()

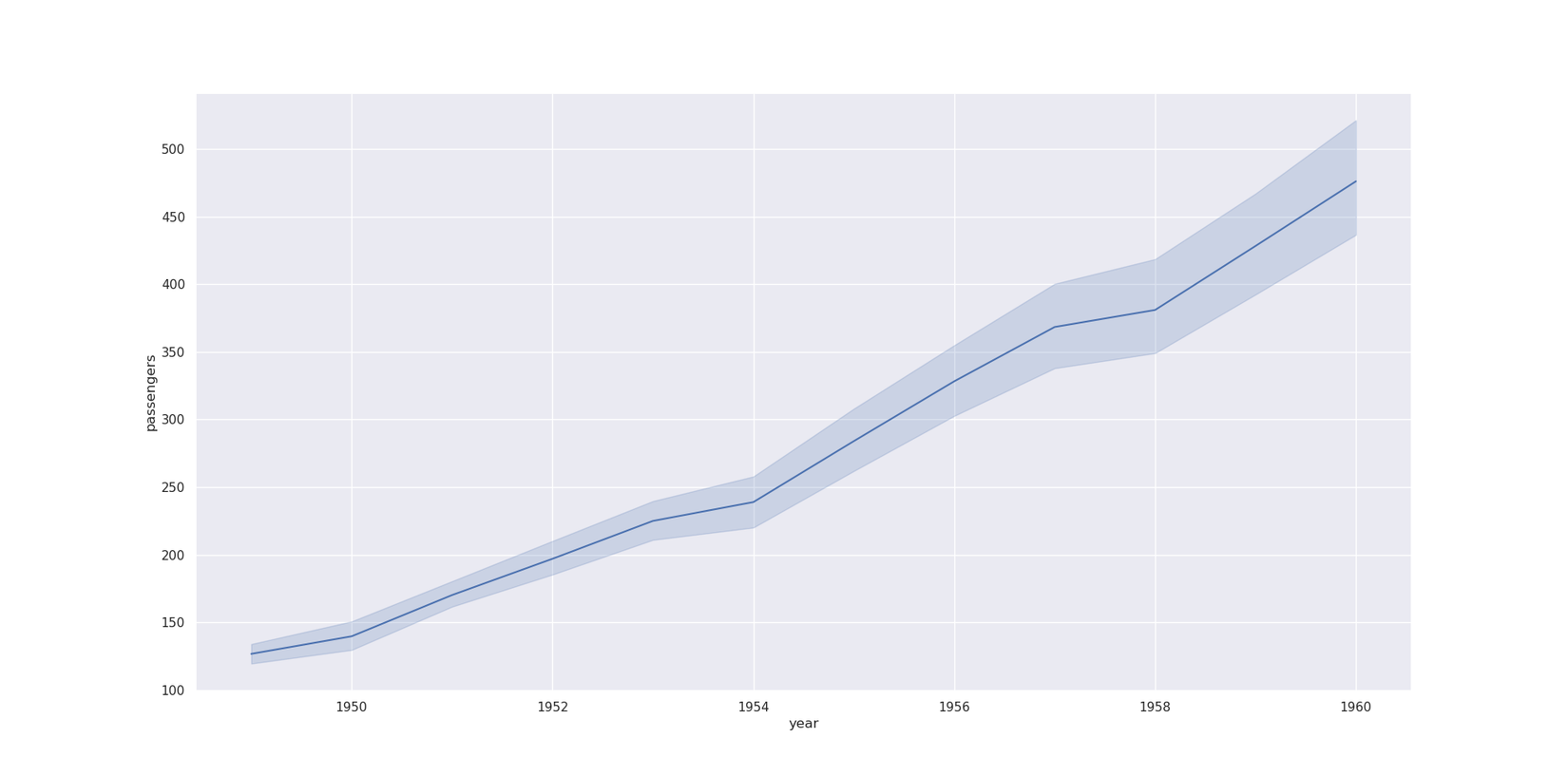

We will then create a line chart of the 12 months at the x-axis adopted via the choice of passengers at the y-axis:

sns.lineplot(x='12 months',y='passengers',information=flights)

The chart will seem in every other window.

The chart will show in a separate window.

Bar charts

You’ll additionally create bar charts. We will name up every other dataset, from a waiter in a New York Town eating place who recorded the volume at the invoice together with the end.

guidelines = sns.load_dataset('guidelines')

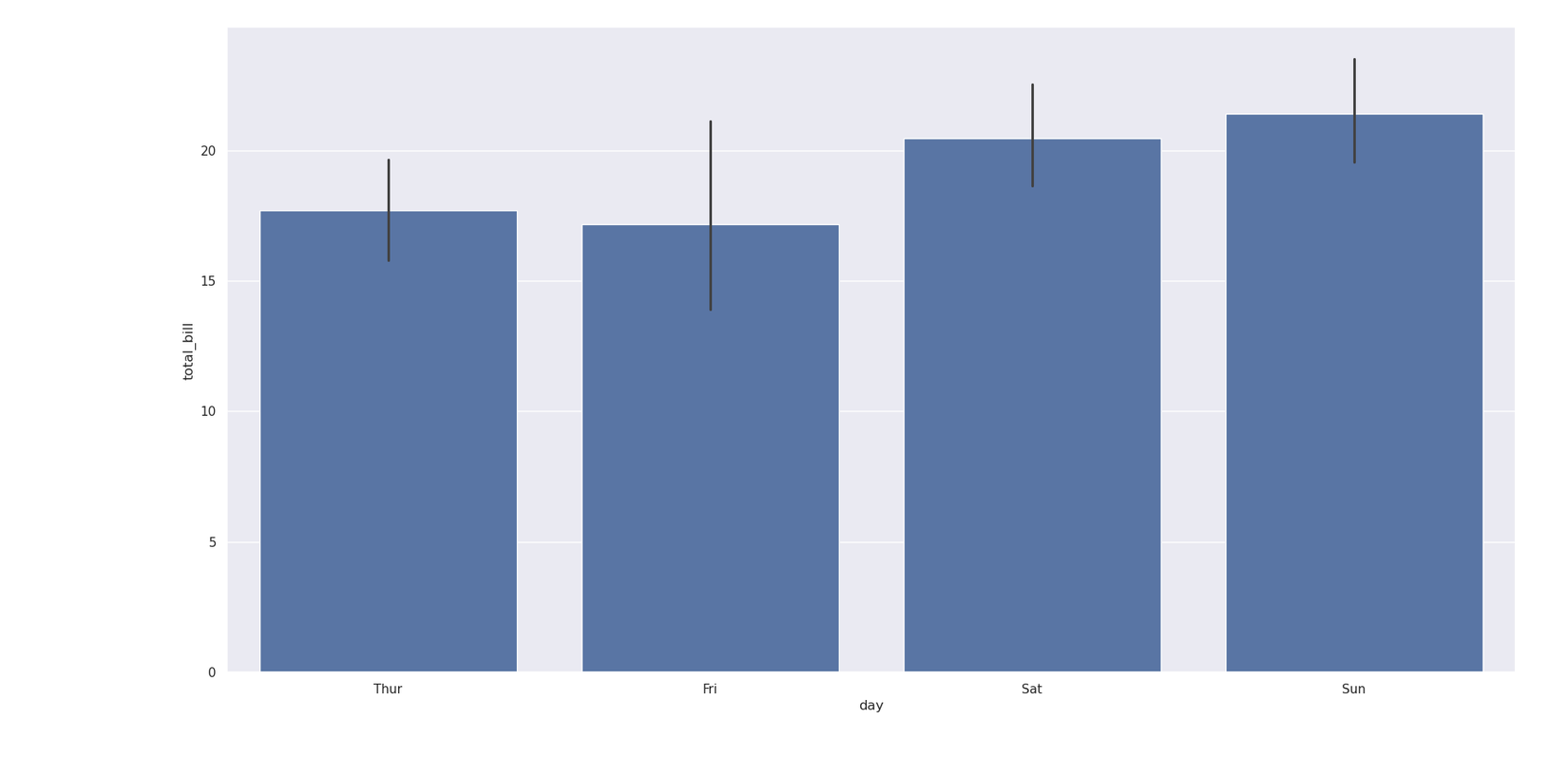

We will create a bar chart that presentations the whole invoice throughout a number of days:

sns.catplot(x='day',y='total_bill',type='bar',information=guidelines)

Scatterplot/regression

Discovering traits on your information

Every other helpful more or less plot is scatterplot and regression, or appearing a trendline. Since those are so commonplace in statistics, information science, and industry, they are simple to create with Seaborn.

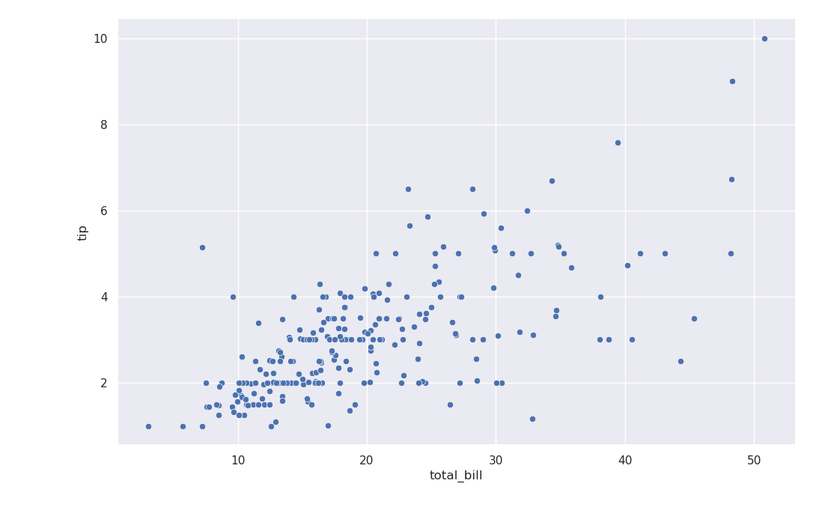

We will create a scatterplot of the end vs. the whole invoice, with the whole invoice at the x-axis and the end at the y-axis. The top would be the dependent variable and the the whole invoice would be the impartial variable. We need to see if there is a courting between the whole invoice and the end.

sns.relplot(x='total_bill',y='tip',information=guidelines)

Chances are you’ll realize that the end turns out to upward push together with the whole invoice. It is advisable to draw a immediately line that is going up from the left to the proper. In different phrases, there seems to be a good linear courting between the 2. The bigger the invoice, the larger the end is.

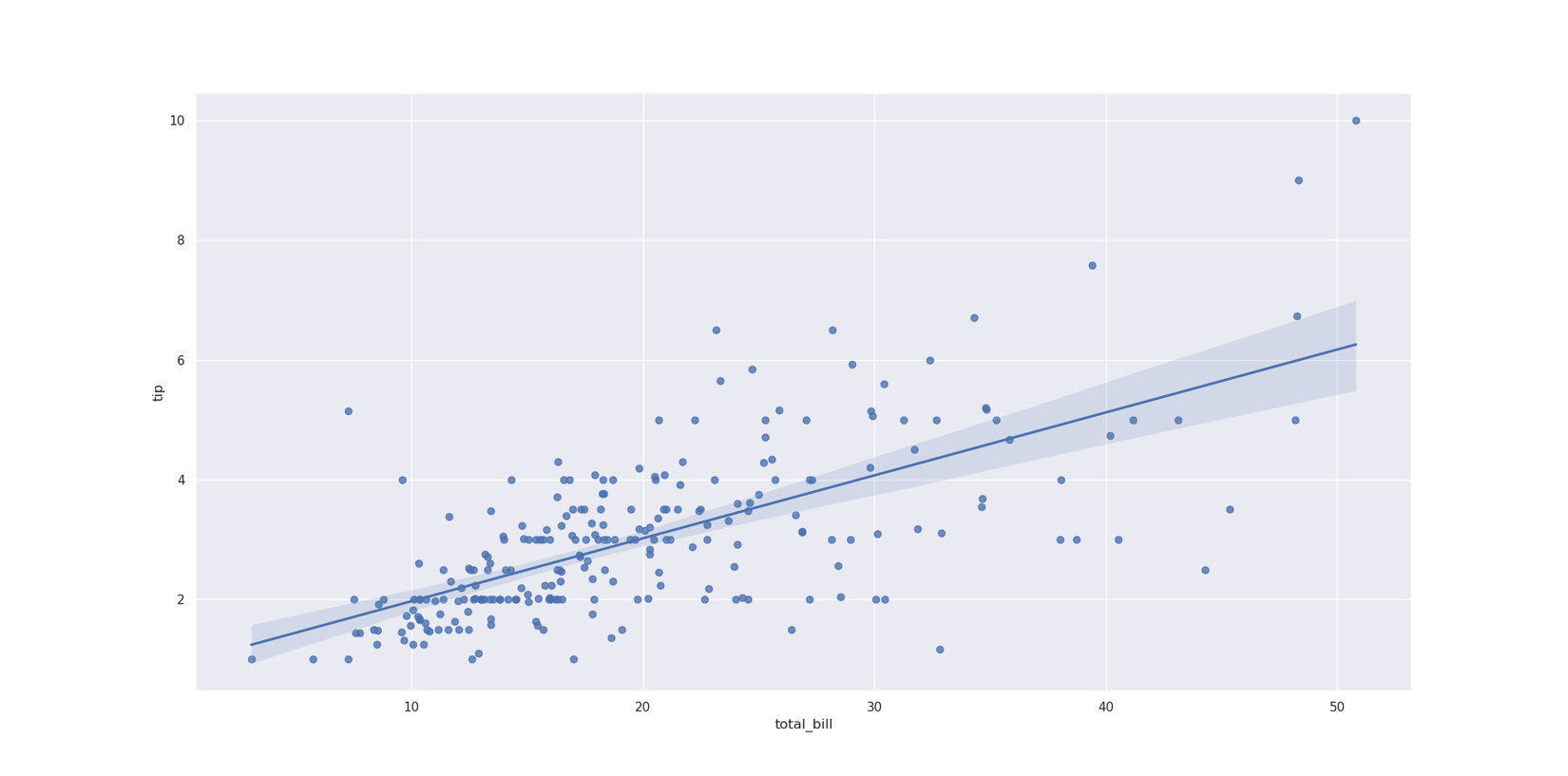

We will additionally draw that immediately line, or the linear regression line, via this scatterplot. The code is similar to the code we used for the scatterplot.

sns.regplot(x='total_bill',y='tip',information=guidelines)

Word that you just will not be able to get the values of the equation for the regression line, such because the slope and the intercept to shape the vintage y = mx + b equation you may keep in mind from highschool algebra. You’ll be able to want to use every other library, comparable to SciPy or statsmodels, which gives you the values for the equation.

Adjusting titles and saving

Ge your charts able for high time

Whilst the plots glance excellent on their very own, they are no longer somewhat able for placing into your charts or shows. You’ll be able to most likely want to trade the labels at the axes in order that they give the impression of being extra understandable on their very own.

You’ll be able to make calls to not Seaborn however to the underlying Matplotlib library. Assume we would have liked to submit the end vs. invoice regression plot. This is how we might blank it up if we would have liked to position it in a document. We might use the code for the regression plot previous however use Matplotlib so as to add a name and regulate the labels at the axes.

sns.regplot(x='total_bill',y='tip',information=guidelines)
plt.name("Tip vs. overall invoice in a New York Town eating place")
plt.xlabel("General invoice (USD)")
plt.ylabel("Tip (USD)")
plt.display()

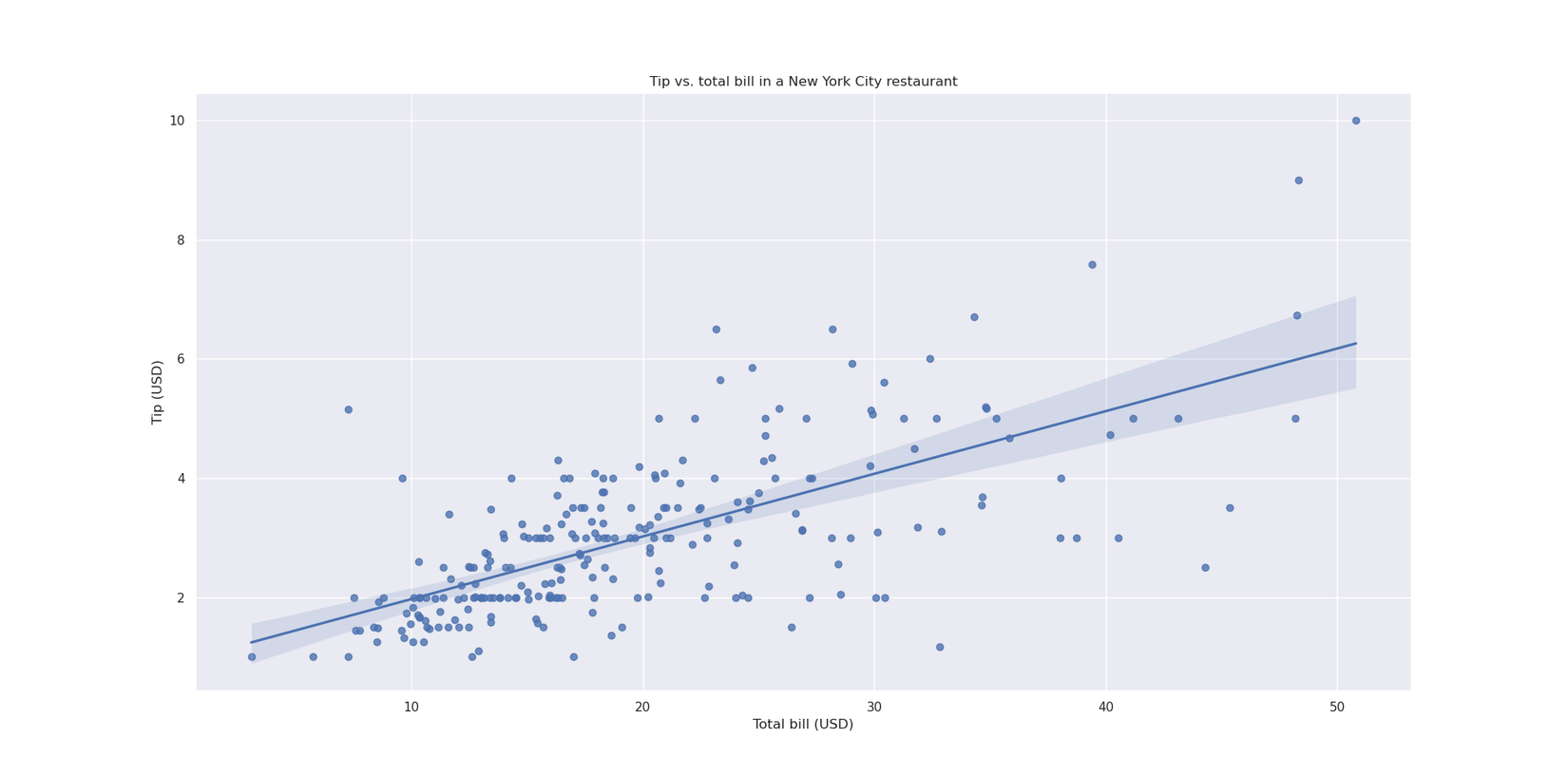

This may increasingly upload a name and eliminate the underscore within the axes, in addition to explain that the quantities are US bucks.

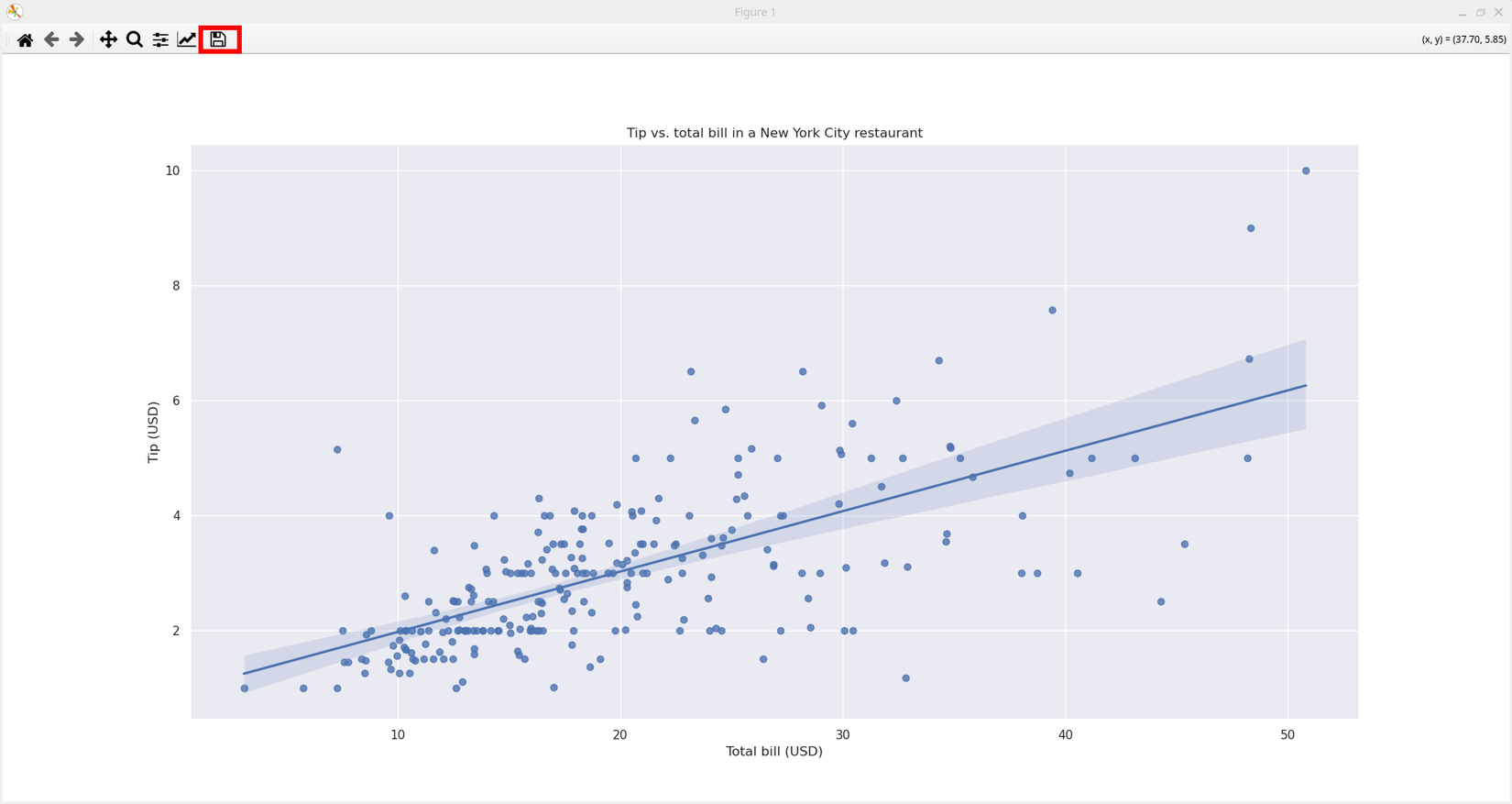

To avoid wasting your plot, you’ll be able to click on the Save icon within the window that is popped up, or you’ll be able to use this command:

plt.savefig('/trail/to/record')

You’ll then drop this into your file or presentation. Matplotlib helps many common codecs, together with PNG.

It is simple to create great-looking charts in Python

It could take a while to be told Python, however with a bit effort, you’ll be able to create publication-quality plots that may enliven your subsequent presentation or document. Mustn’t you place as a lot effort into the visualizations as you do in ensuring the phrases and numbers are right kind?
