You’ll be able to strengthen many pieces with 3-d published upgrades, however issues don’t all the time have compatibility completely the primary time round. It’s irritating to spend money and time looking ahead to an object to print, most effective to determine it was once excited by naught and you’ve got to begin once more.
Fortunately, there’s one nifty little slicer trick that you’ll be able to use to test the have compatibility earlier than you print the entire thing.
When to make use of this trick
Through chopping out the a part of a type that should have compatibility exactly, you’ll be able to print simply that section earlier than committing to the entire thing. This can be a part of a type into which one thing slides (like a case), a substitute section this is designed to fit right into a groove (like a refrigerator shelf), or two portions of the similar type which are designed to fit in combination.
It’s preferrred for each pieces you may have designed your self and the ones you may have downloaded from type repositories. From time to time a type’s feedback will expose that some folks assume the type is just too free or too tight. On occasion, the creator will submit a 1% scaled type to handle those considerations.
On best of this, other filaments behave in distinctive tactics. If you wish to print a type the usage of a selected form of filament (like PETG as an alternative of PLA) however you’re now not positive if this may occasionally lead to sudden shrinkage, printing a have compatibility information can alleviate your considerations.
Lower, slice, print
You’ll be able to use this trick with any type that you’ll be able to import right into a slicer—take your STL, OBJ, or 3MF report and open it up. I’ll be the usage of Bambu Studio for this case, however all fashionable slicers will have to come up with get right of entry to to a minimize software, which we’ll be the usage of.

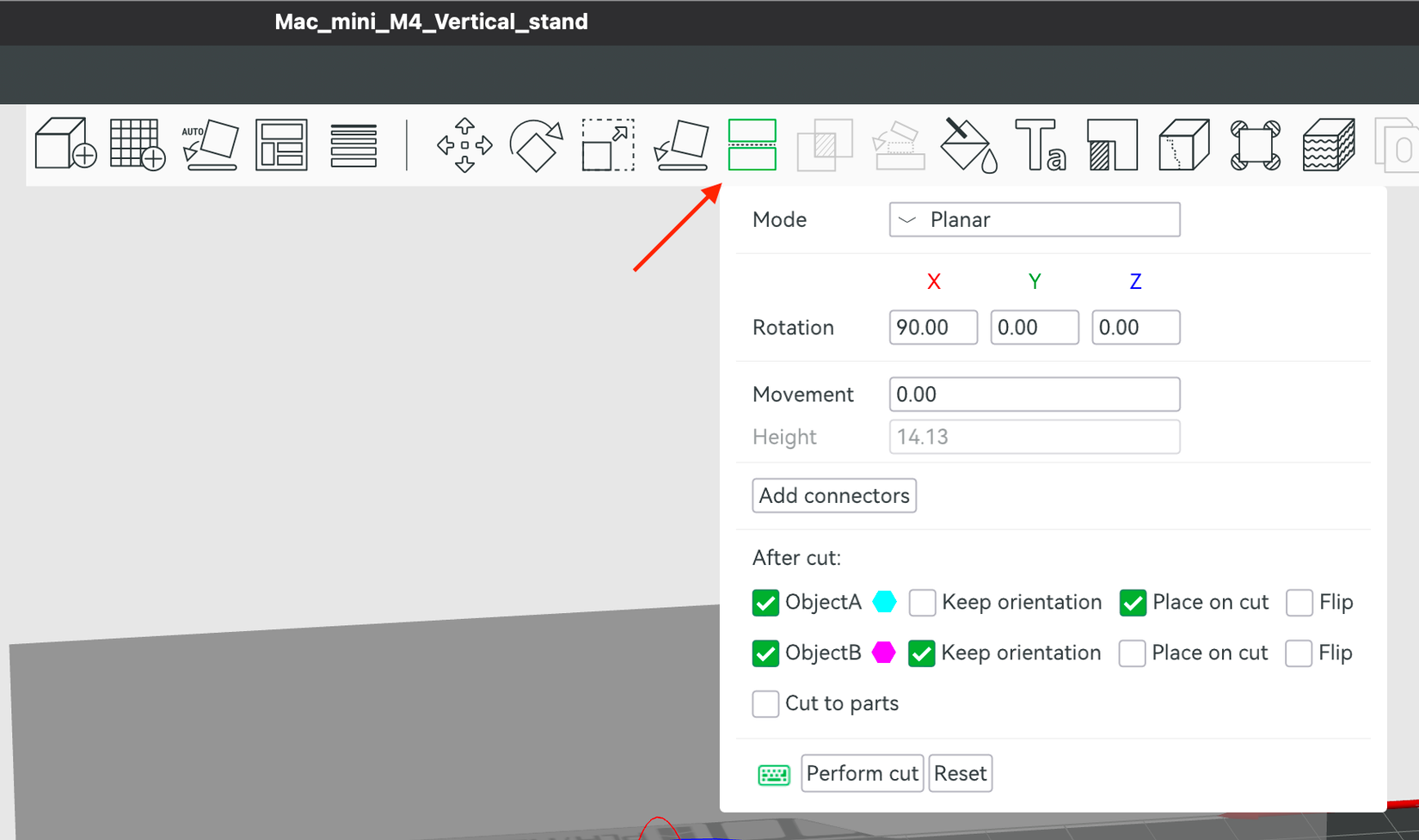

Sooner than you slice your type in preparation for print, make a selection the type and in finding the “Lower” software. In Bambu Lab, you’ll see a variety which you’ll be able to manipulate via converting the X, Y, and Z axis angles:

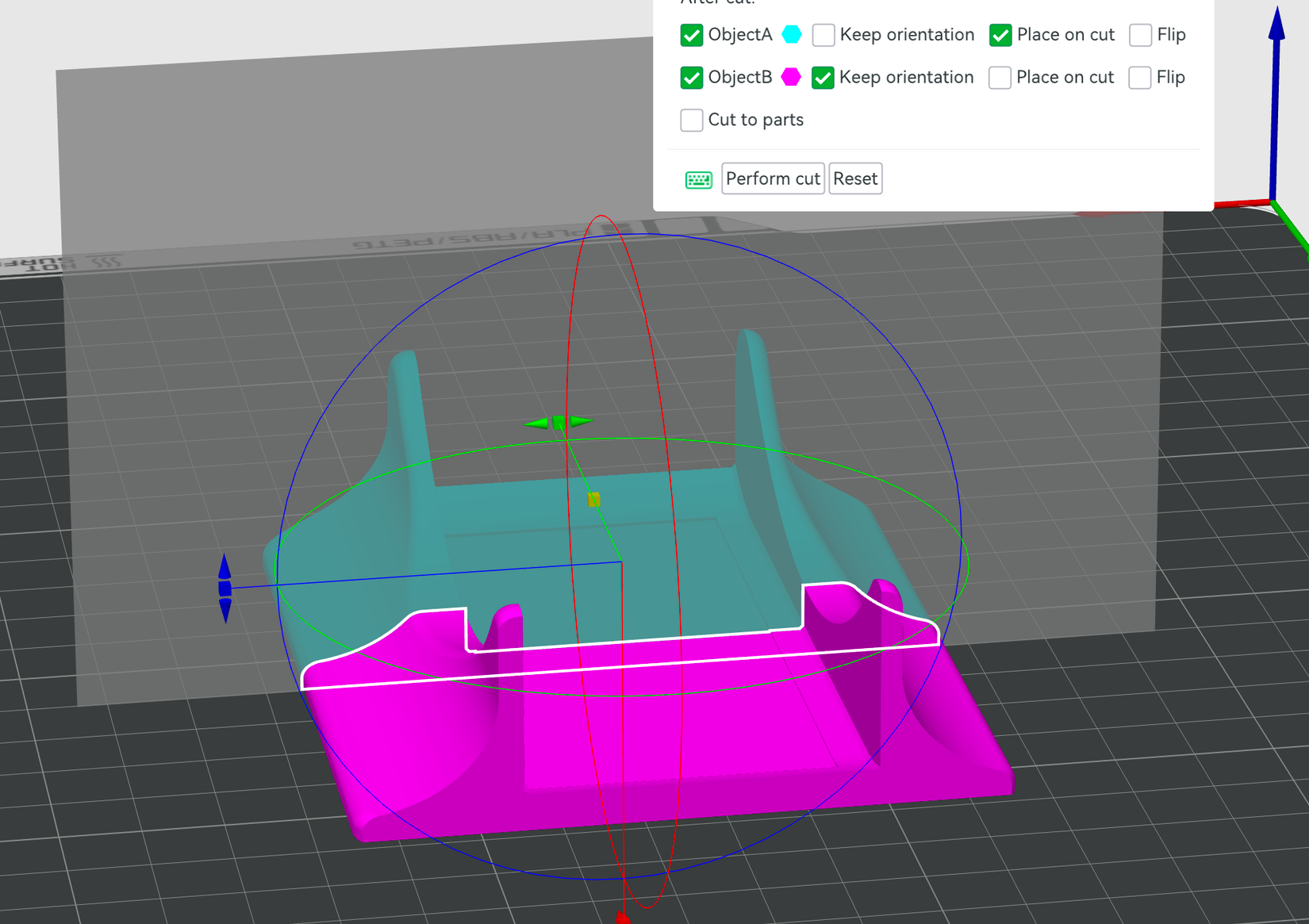

Let’s take an instance type of a Mac Mini upright stand, one thing you don’t wish to be too tight or free. It is a moderately small type that’s gentle on filament (33g) the usage of the creator’s default settings, with a print time of round an hour and a part. I took the minimize software and adjusted the X axis to 90º, after which located the aircraft to chop the type in two:

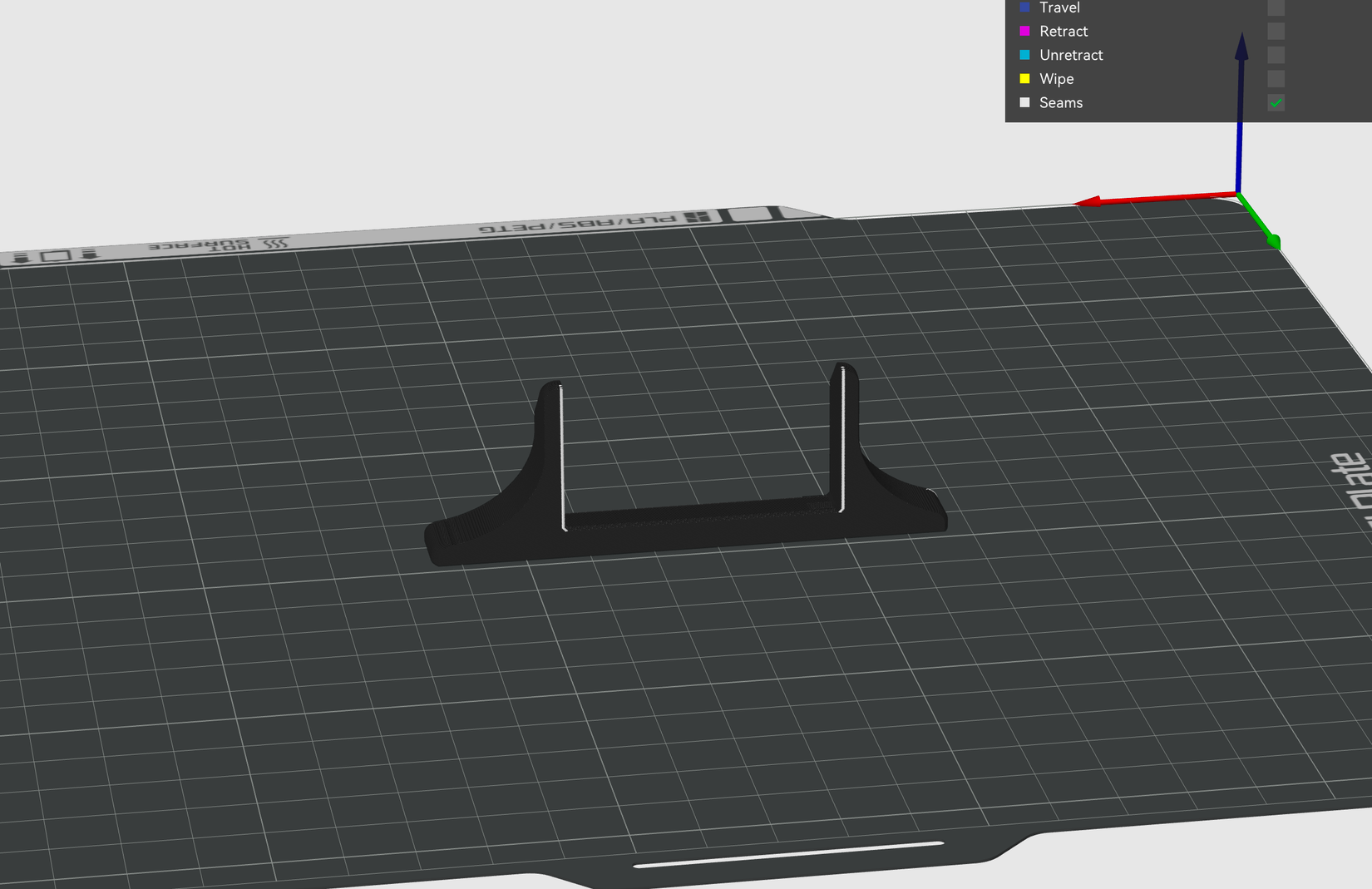

Clicking “Carry out minimize” offers me two items. I deleted the bigger part of the type and created every other minimize in order that I necessarily finally end up with a cross-section of the type round which the Mac mini is meant to suit. The very last thing to do is reorient the type in order that it prints in an equivalent type to how the “actual” type will print the usage of the “Lay on Face” software:
Now to slice the type once more and spot that I’ve minimize the overall filament price down to only underneath 3g and the print time (together with calibration) to round half-hour. At this degree, you’ll be able to even use a special colour on your ultimate print (like a spool finish you’re looking to end) supplied it’s the similar filament sort and behaves in the similar method as your completed merchandise would.
Damned in case you do, damned in case you don’t
As soon as your take a look at print is whole, you’ll be able to take it out of bed, check out the have compatibility, and make any changes which are essential. You should even print a 2nd take a look at print in case you aren’t positive.
The most obvious drawback to running like that is that you simply’re spending time and filament growing an extra print that you could now not want. In case your type suits the primary time, you’re going to query the validity of this way. It is going to appear to be you’ll have simply published the type in a single shot, proper off the bat.
That’s a legitimate fear, however imagine the other. When you sacrifice loads of grams of filament and hours of print time generating an merchandise that doesn’t have compatibility appropriately, you’ll want you had acted another way.
Most likely the easiest way to make use of this trick is to take action sparingly, most effective on prints that really feel like an actual dedication.
One of the crucial highest instances to make use of a trick like that is whilst you’re the usage of your 3-d printer to enhance energy equipment, and the have compatibility must be excellent.
