The ESP32 is without doubt one of the best possible microcontrollers in the marketplace for construction low-power sensors. By means of connecting a microphone (and once in a while a couple of further elements), the ESP32 can react to sound in some fascinating techniques.
Listed here are 5 initiatives to check out.
Moveable birthday party lighting fixtures
Take the birthday party with you
Most probably some of the entertaining ESP32 initiatives in the market, this Instructables information for a fully moveable birthday party mild can turn out to be your subsequent get-together (or simply take a seat within the nook of the room, in a position for the following time you spin some tunes).
Whilst the information makes use of a Leaflabs Leaf Maple Mini STM32F103RCBT6 (check out pronouncing that temporarily), the creator notes that the ESP32 would make the easiest stand-in as a profitable improve to the mission (and of course works with the Arduino IDE).
The remainder of the mission is dependent upon a graphic equalizer, an affordable microphone, an non-compulsory servo, an LED driving force board, and a compact 5,000mAh battery pack to make the design in reality moveable (plus some resistors, capacitors, wires, glue, screws, and the remainder of it).
Sound tournament detection in House Assistant
Establish sounds and act on them
Seeed Studio, producers of one of the most maximum relied on ESP32 building forums in the marketplace, have produced a information to making a legitimate tournament detection module that works with House Assistant. It makes use of the corporate’s XIAO ESP32-S3 building board and the D1 sound tournament detection module to do that.
Constructed at the ESPHome framework, the completed module can acknowledge 5 “ordinary” sound occasions. Those come with a child’s cry, glass breaking, gunshots, smoke and carbon dioxide alarms, and the sound of noisily snoring. Those can then be utilized in House Assistant to log occasions and even cause automations.

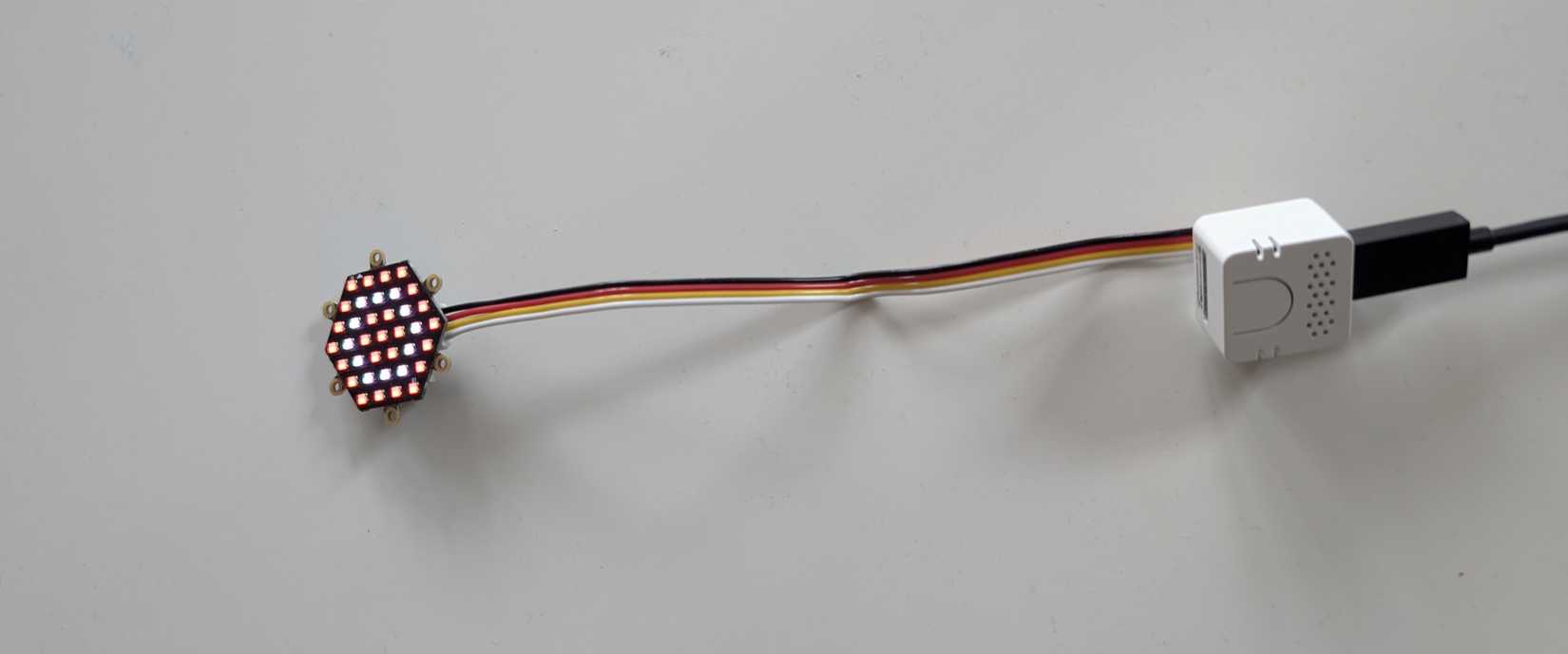

Decibee loudness reminder
Give one for your loudest coworker
The Decibee is a tiny decibel meter that you’ll be able to put anyplace you wish to have a delicate reminder to stay your voice down. This actual mission makes use of the M5Stack ATOM Echo sensible speaker dev equipment (which options an embedded ESP32-PICO-D4 plus a microphone) along with the M5Stack Neo HEX 37 RGB LED board. You’ll additionally want a unmarried four-pin cable and a method of powering the software.
The LEDs keep darkish whilst you’re quiet, with the lighting fixtures fading up via yellow, orange, and sooner or later crimson when issues get louder. You’ll even see further animations all through peaks or sustained stretches of loudness, and a unprecedented “middle” animation seems on occasion whilst you’re quiet to praise you for retaining it down.
The software includes a browser-based dashboard to turn what number of hearts and signals had been earned. You’ll be able to additionally alter the sensitivity for your liking.
Sound-reactive WLED controller
Flip your LED strips right into a disco
WLED lets you use microcontrollers just like the ESP32 to regulate NeoPixel LEDs and different chipsets. It’s easiest for sensible house temper lights, with an entire vary of particular results, enhance for 10 LED outputs in line with ESP32, over-the-air updates, a browser-based configuration instrument, and local enhance for House Assistant.
You’ll be able to take WLED to the following degree with Audio Reactive WLED, a method of the use of WLED controllers to react to sound and track. There are a couple of regulations you’ll wish to apply, relying on the kind of chip you’ve gotten and the microphone you wish to have to make use of. I2S microphones are observed as the simpler choice, even though you’ll be able to even twine up a line-in and skip the microphone completely.
Including sound reactive functions for your present WLED setups is a pleasing technique to flip calm, controllable LED temper lights right into a dance birthday party in a question of seconds.

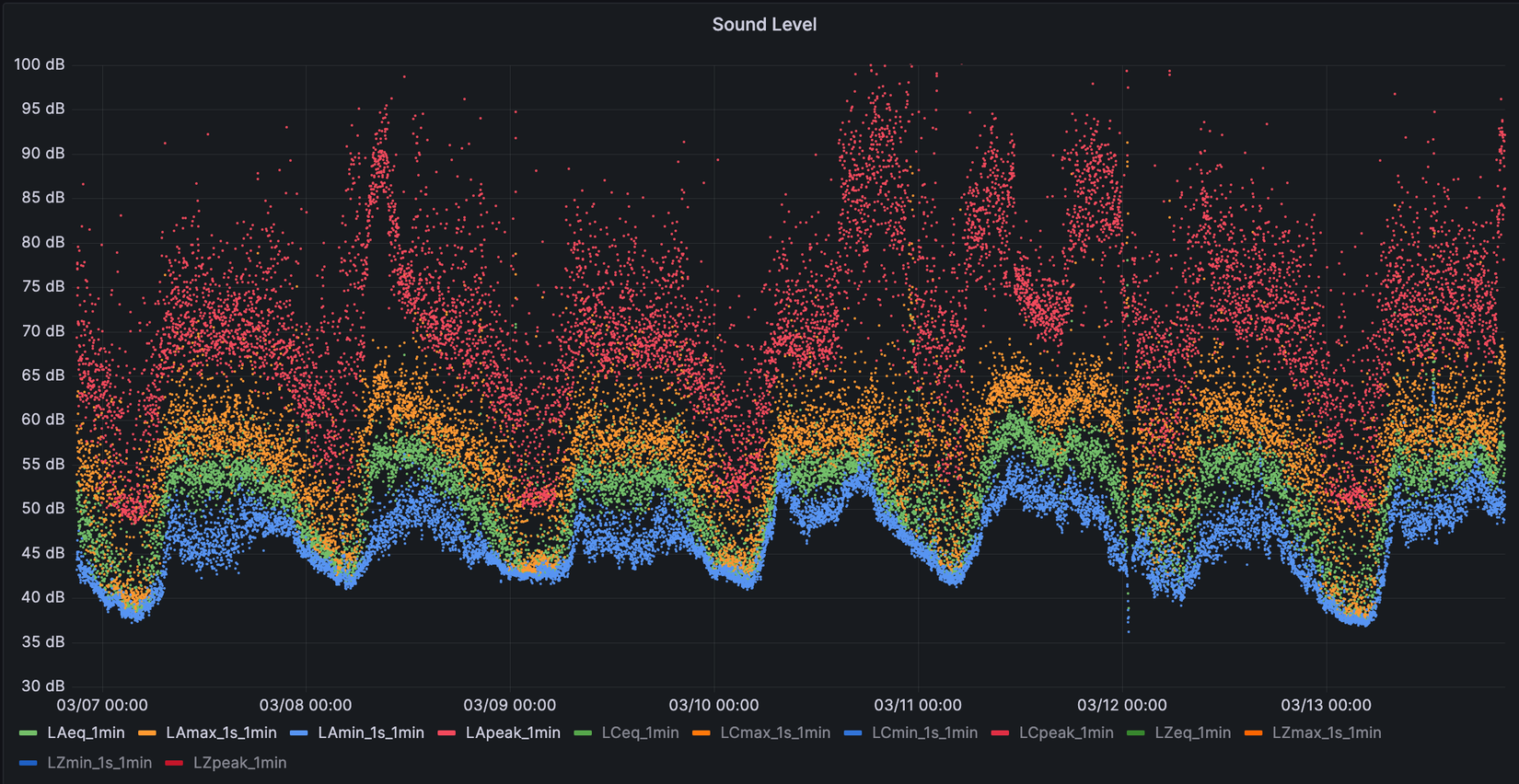

ESPHome sound degree meter
Log or cause sounds with ambient noise ranges
ESPHome is a framework for construction sensible house sensors and different equipment the use of the ESP32 and equivalent microcontrollers. If you wish to have a easy sensor that may communicate to House Assistant, logging audio occasions or even triggering automations, this information must lend a hand.
This mission brings Ivan Kostoski’s Hackaday.io mission into ESPHome. For {hardware} main points, you’ll wish to apply Ivan’s information and use an ESP32, an I2S virtual microphone, breadboard, and non-compulsory OLED show. With ESPHome put in for your ESP32, you’ll be able to then upload the mission with a unmarried line of code on your config report.
For the reason that information was once posted, ESPHome has carried out sound_level and i2s_audio functions that make it even more uncomplicated to make use of a microphone on your ESPHome gadgets.
